Attic Air Handler Leaking Water? Townhome Fixes for the Triangle

Where Does All That Water Come From?

Homeowners are often shocked by the sheer volume of water an air conditioner produces. Your AC system does not just cool indoor air; it functions as a powerful dehumidifier.

In Central North Carolina, summer outdoor humidity regularly hovers between 70% and 90%. As warm, moisture-laden return air blows across the cold indoor evaporator coil (typically at 45°F), atmospheric water vapor condenses rapidly on the aluminum fins. A typical 3-ton air conditioner operating in the Triangle pulls between 5 and 20 gallons of water from your indoor air every single day.

Under normal conditions, this water drips into an internal plastic drain pan and flows smoothly through a 3/4-inch horizontal PVC drain line to the outside of your foundation or into an interior plumbing drain.

The Primary Culprits Behind Attic Air Handler Leaks

When water begins escaping from your attic air handler, it is almost always caused by one of these four mechanical problems:

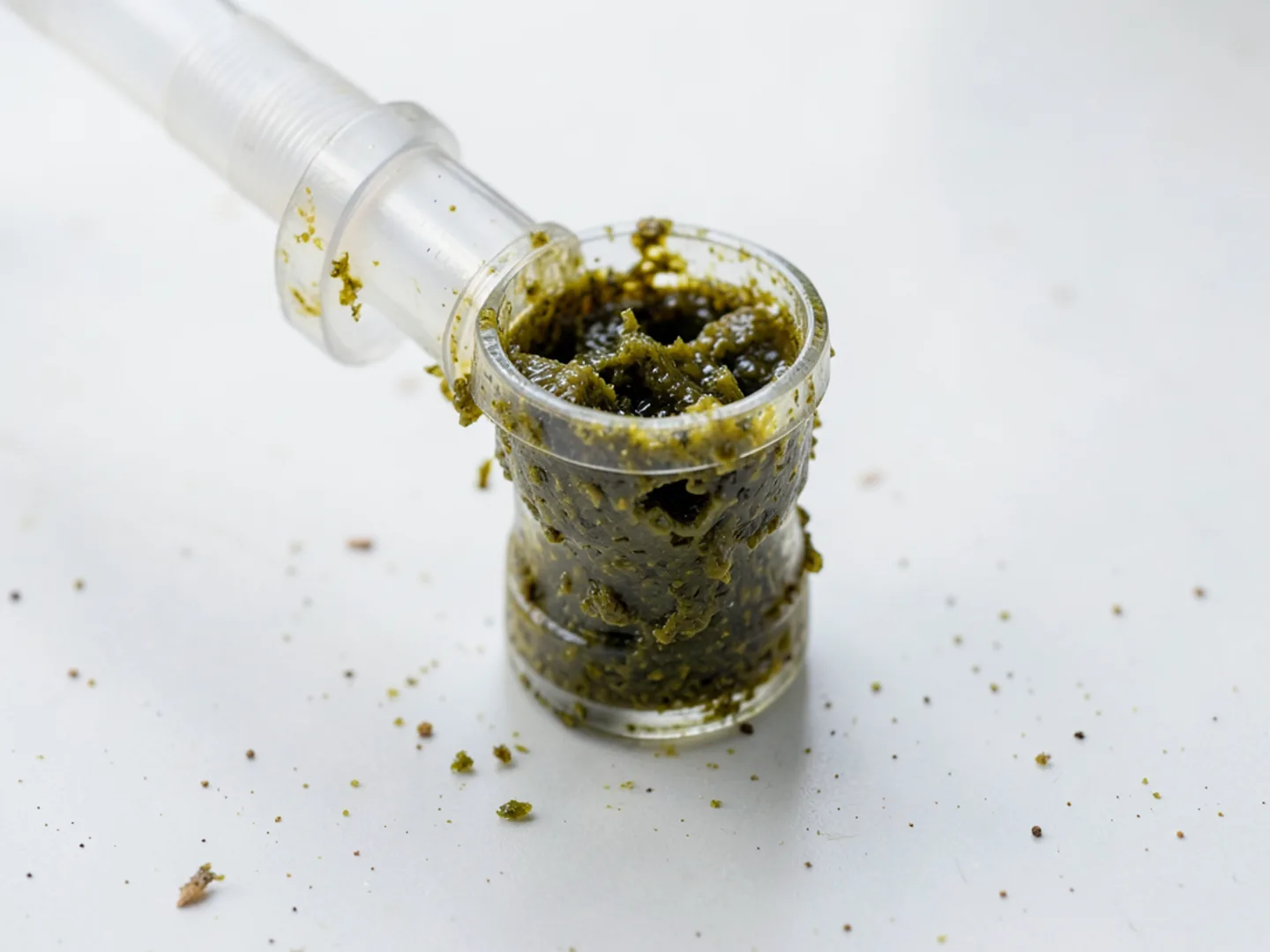

• Algae and Biofilm Clogs in the P-Trap: Unconditioned Carolina attics reach temperatures exceeding 130°F in July. The combination of heat, standing moisture, and airborne organic dust creates the perfect incubator for microbial algae and slime. This gel-like biofilm accumulates inside the PVC P-trap, creating an impermeable plug that causes water to overflow the internal drain pan.
• Cracked Internal Drain Pan: Over 10 to 15 years, repeated thermal expansion and contraction causes plastic drain pans to develop hairline stress fractures, allowing water to seep through the bottom of the air handler cabinet.
• Frozen Evaporator Coil Thawing: If a dirty air filter or low refrigerant charge causes the evaporator coil to freeze into a solid block of ice, the sheer volume of melting ice during a shutdown will overwhelm the drain pan and spill over the sides.

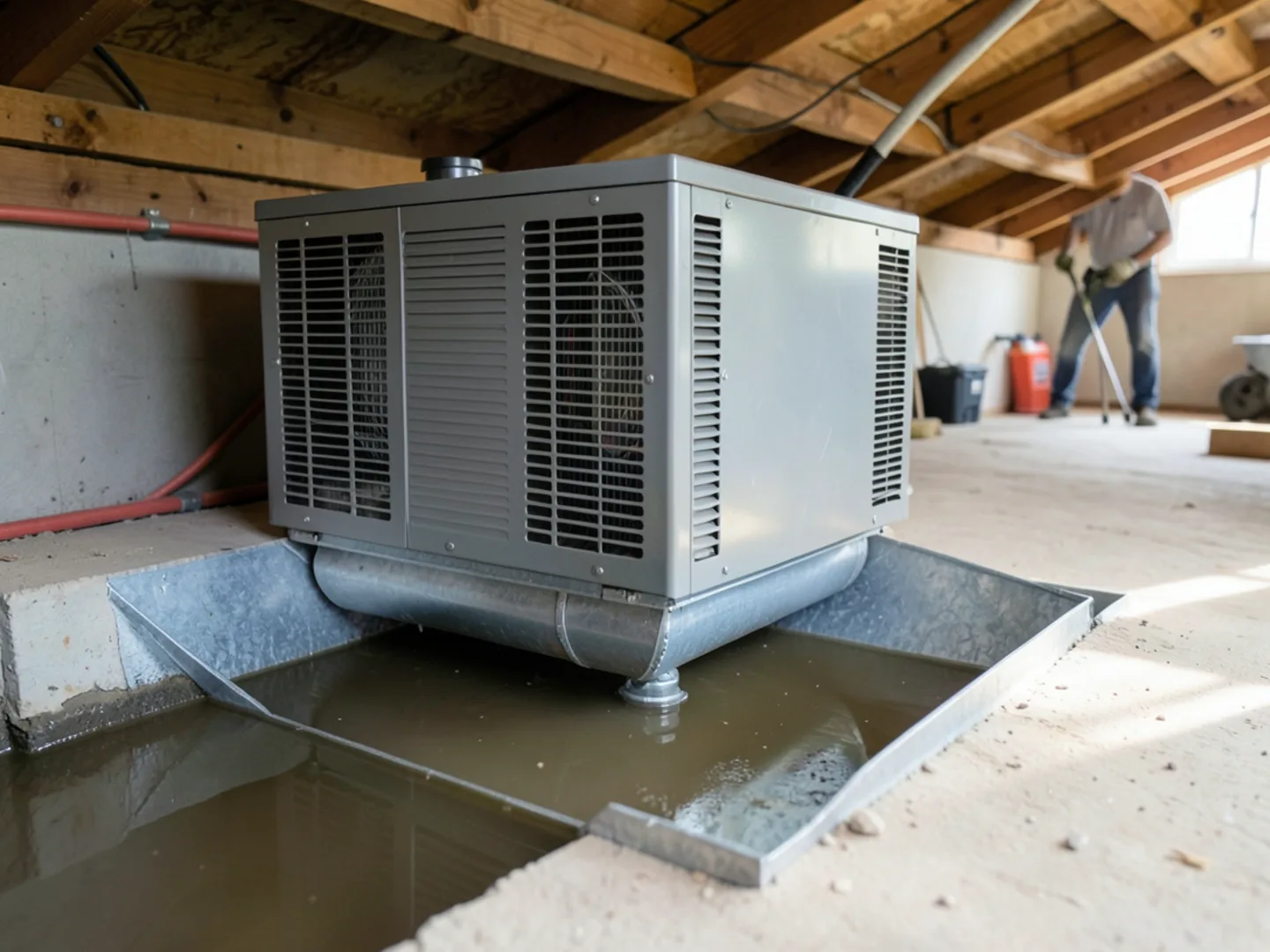

• Missing or Failed Secondary Drain Pan Float Switch: Building code requires a secondary emergency metal pan beneath attic air handlers, fitted with a float switch. If this switch was never installed or fails mechanically, water in the secondary pan overflows directly onto your ceiling drywall.

Immediate Emergency Steps to Stop Ceiling Damage

If you discover water dripping from your ceiling, take these actions immediately:

1. Turn Off the AC at the Thermostat: Switch the system mode to 'Off' immediately. Do not leave the fan running, as the blower will continue generating condensation or blowing water out of the pan.

2. Contain the Water: Place buckets or heavy towels under the drip area. If ceiling drywall is visibly sagging with a large water blister, carefully poke a small hole in the center with a screwdriver to drain the pool into a bucket—this relieves weight and prevents the entire sheetrock panel from collapsing.

3. Inspect the Attic Pan: If you can safely access your attic, check the secondary metal overflow pan beneath the air handler. If it is full of water, the primary drain line is completely obstructed.

How Quality Heat and Air Solves Attic Leaks Permanently

Our technicians carry specialized equipment to clear drain lines and safeguard townhomes against future water damage:

High-Pressure Nitrogen Blowouts: We blow 150 PSI of dry nitrogen through the drain line, blowing out stubborn algae plugs and sediment.

Installing Dual Electronic Float Switches: We wire float switches into both the primary drain line and the secondary emergency pan. If water rises even a half-inch, power to the outdoor compressor cuts off instantly, preventing water from ever reaching your ceiling.

Installing Transparent EZ-Trap Cleanouts: We replace glued PVC joints with transparent P-traps featuring accessible cleanout ports, making routine vinegar maintenance effortless for homeowners.
